Does a Radiant Barrier Work for Wick 40×60 Pole Barns?

Does a Radiant Barrier Work for Wick 40×60 Pole Barns?

When you invest in a Wick 40×60 pole barn, managing heat gain during summer and retaining warmth in winter is crucial for workshop comfort, livestock health, or storage longevity. Radiant barriers—often foil-faced materials installed under the roof—claim to reflect radiant heat away from the interior. But does this technology deliver measurable benefits for a 40×60 structure built by Wick? Let’s examine the science, installation realities, and practical trade-offs specific to this building size and brand.

How Does Radiant Barrier Performance Change With Wick 40×60 Roof Pitch?

Wick Buildings typically uses roof trusses at a 4/12 to 6/12 pitch for 40×60 models. Radiant barrier effectiveness depends heavily on an air gap—usually 1 to 4 inches—between the barrier and the roof decking. On a 40×60 building, the low slope reduces natural convection in the attic cavity, which can diminish performance compared to steeper roofs. You’ll want to install the barrier with the reflective side facing the air space, not directly against the metal sheeting. A practical test: during summer, place a hand on the underside of the roof before and after installing a radiant barrier—you’ll notice the surface temperature drops by 10-15°F (5-8°C) compared to non-reflective insulation alone.

Does a Radiant Barrier Replace Fiberglass Batts in Wick 40×60 Walls?

No. Radiant barriers stop radiant heat transfer but do little to slow conductive or convective heat loss through walls. For a Wick 40×60 used as a heated workshop or climate-controlled storage, you must combine the foil with a minimum R-19 fiberglass batt (for walls) and R-30 or higher for the ceiling. Placing a radiant barrier on the interior side of wall girts before installing insulation can reduce summer heat gain by approximately 10-15%, but only if the barrier faces an air gap. One common mistake is stapling the foil directly to the purlins—this kills the air gap and cuts effectiveness by half. For the 40×60’s 2×6 wall framing, use a 4-mil perforated reflective foil, stapled at 12-inch intervals to leave a 1-inch air space between the foil and the siding.

What Is the Cost vs. Payback for a Wick 40×60 Radiant Barrier?

These figures assume a typical Midwest climate where summer daytime temperatures exceed 90°F (32°C). Your exact savings depend on whether the barn is conditioned (heated/cooled) and the number of windows or doors. Consider pairing this with Wick 40×60: Metal Siding vs Vinyl Siding Pros and Cons to balance overall energy efficiency.

Can You Install a Radiant Barrier After the Wick 40×60 Roof Is On?

Yes, but it’s harder. Wick’s pre-engineered trusses and metal panels make post-build access limited. If your building is closed in, your best option is to crawl between trusses—typically spaced 8 feet apart—and staple the foil to the underside of the purlins. Expect to cut the material into 8-foot widths to fit between trusses and overlap seams by 2-3 inches. A roll of 50-inch wide radiant barrier can be cut lengthwise into two 25-inch strips, which makes handling easier in tight attic spaces. Always wear a dust mask and eye protection—the foil edges are sharp. For existing buildings, this retrofit costs about $0.25 to $0.40 per square foot in materials.

Does Radiant Barrier Affect Condensation in a Wick 40×60?

This is the most common concern with pole barns. Radiant barriers—especially foil-faced bubble wraps—can trap moisture against the roof underside if installed incorrectly. For a Wick 40×60, use a perforated radiant barrier (with thousands of tiny holes) that allows vapor to pass through, reducing condensation risk. Pair it with a breathable vapor-permeable underlayment between the metal roof and the purlins. In cold weather, a non-perforated barrier can cause condensation drips that lead to rust on the roof deck or staining on stored items. The solution: install a 10-mil polyethylene vapor barrier on the heated side of the insulation (e.g., facing the interior living space) and keep the radiant barrier on the exterior side with an air gap.

What Are the Best Radiant Barrier Products for Wick 40×60?

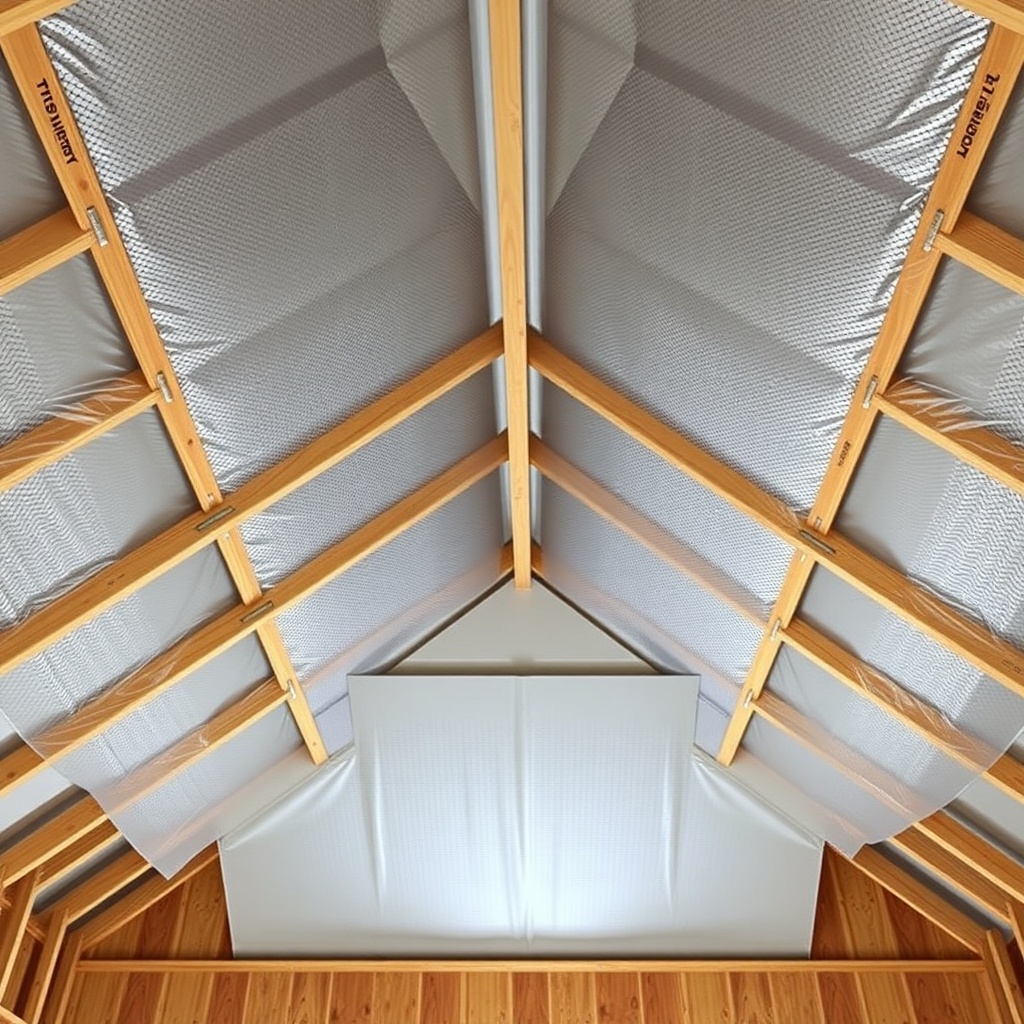

Three product categories work well for this structure. First, double-sided reflective foil—the NASA-style product—with a 95% reflectivity rating. Suited for the entire roof deck. Second, reflective foil with a scrim reinforcement (e.g., Reflectix or style) for durability if you’ll have active air movement. Third, foil-faced EPS foam panels if you’re doing a full ceiling finish. For a 40×60 building, buy in bulk—1,500 square feet should cover the roof with 10% waste for cuts and overlaps. Installation steps: run the foil perpendicular to the purlins, overlap seams 4 inches, staple every 6 inches at edges, and tape all seams with foil tape. Avoid using standard duct tape—it degrades in heat.

What Owners Say

Wick 40×60 owners in the Midwest and Plains states report mixed but generally positive results. One owner in Iowa noted that after adding a radiant barrier, “the shop stays 10-15 degrees cooler in summer, but I didn’t see huge winter savings until I reinsulated the ceiling with R-38.” Another in Kansas mentioned that their 40×60 “had condensation issues on the roof every spring—installing a perforated radiant barrier stopped it completely.” However, a third owner in Missouri commented that “if you don’t have an air gap, don’t waste your money—I stapled foil directly to the purlins and saw zero difference.” These real-world experiences confirm that proper installation with an air gap is essential.

Frequently Asked Questions

1. Will a radiant barrier make my Wick 40×60 workshop too hot in winter?
   No—radiant barriers reflect internal heat back into the space if the foil faces the interior. However, they are most effective at rejecting external heat. In winter, a properly installed roof radiant barrier can reduce heat loss through the roof by about 5-15%, but you still need bulk insulation underneath.
2. How long does a radiant barrier last in a pole barn?
   A quality double-sided polyester-reflective barrier lasts 20+ years if not punctured or exposed to UV. Inside a Wick 40×60, the foil stays protected by the metal roof and won’t degrade unless physically damaged.
3. Can I install a radiant barrier on the walls instead of the roof?
   Yes, but it’s less effective. Wall radiant barriers work best on south- and west-facing walls during summer. For a 40×60, consider combining roof barrier with reflective wall insulation only if you have large windows or doors generating heat gain—like Wick 40×60: Sliding Doors vs Roll-Up Doors for End Openings where sunlight streams in.
4. Does a radiant barrier help with snow load on the roof?
   No. Radiant barriers do not affect snow load. They only reflect radiant heat. For snow shed, focus on proper roof pitch and ventilation. However, if the barrier reduces heat loss in winter, it might prevent ice dams by keeping the roof deck uniformly cold.
5. Is there a fire risk with radiant barriers?
   Most reflective foils used for pole barns are fire-rated (Class A or Class 1). Check product specs—avoid using polyethylene bubble wrap without a fire rating in occupied spaces. For a Wick 40×60 used as a garage or workshop, choose a foil product with a Class A flame spread rating.
6. Can I use a radiant barrier under the concrete slab of a Wick 40×60?
   Yes—placing a reflective foil under a concrete slab can reduce heat loss into the ground. This is especially helpful if you have in-floor heating. Use a 4-mil film designed for under-slab installations. Pair with Wick 40×60 Foundation: Gravel Base vs Concrete Slab Comparison to decide if a slab is worth the added cost.
