Why Frost Protection Matters for a Wick Buildings 40×60 in Cold Climates
When you invest in a Wick Buildings 40×60, the foundation is the backbone of your structure—especially in regions where ground freezing is a real threat. Frost heave, caused by water in the soil expanding as it freezes, can shift posts, crack slabs, and compromise the entire building if not addressed. For a building this size—2,400 square feet of potential workshop, storage, or livestock space—getting the foundation right is non-negotiable in cold climates. This article focuses on anchoring methods that prevent frost damage, giving you a stable, long-lasting structure even through harsh winters.
How Deep Should Wick Buildings 40×60 Posts Be Set to Resist Frost?

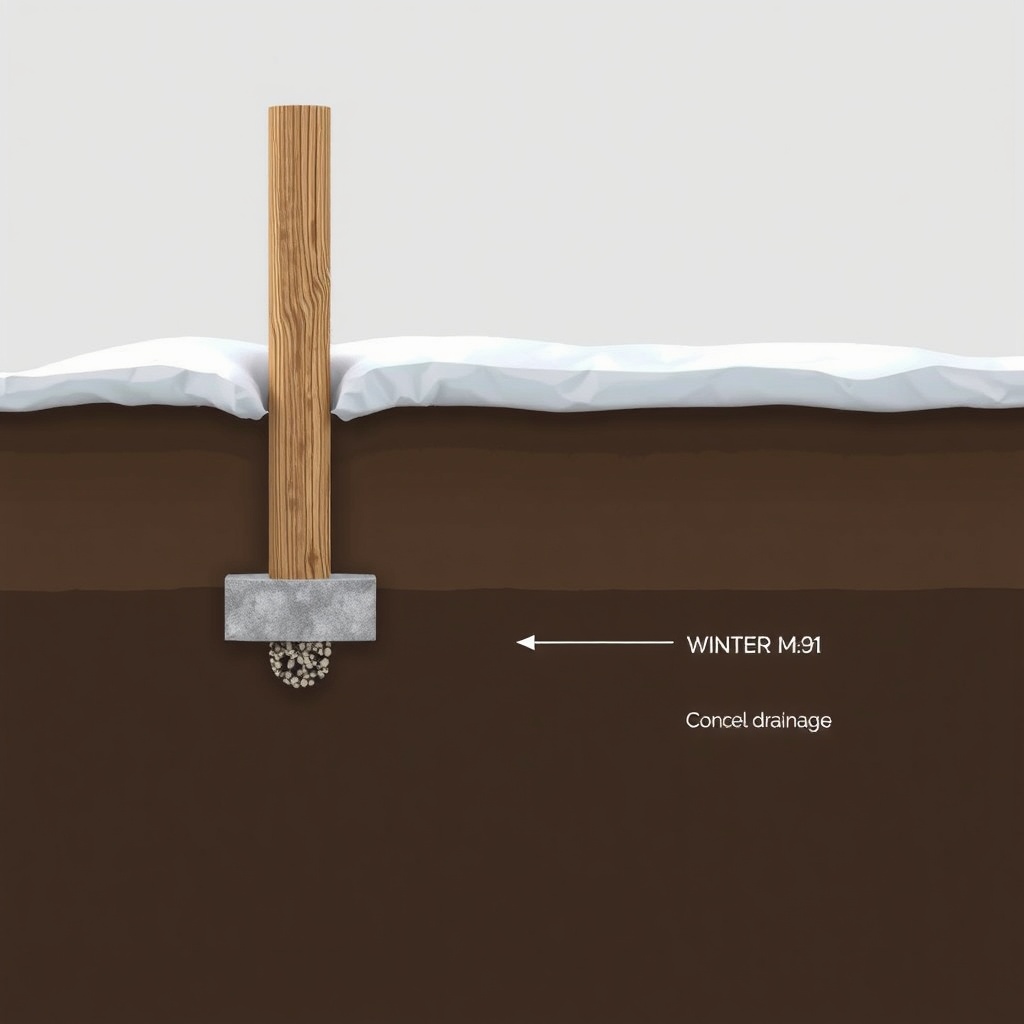

The depth of post installation is the first line of defense against frost heave. For a Wick Buildings 40×60 in cold climates, the posts must extend below the frost line—the deepest point where soil freezes in your area. In northern states like Minnesota or Montana, this can range from 42 to 60 inches (3.5 to 5 feet) deep. Local building codes often dictate this depth, typically based on historical frost data. Wick Buildings recommends consulting your local code enforcement to determine the exact frost line, as it varies by region. Setting posts too shallow risks upward pressure from frozen soil, which can lift the building and cause structural misalignment.
For example, in USDA Zone 4 (common in the Great Lakes region), a frost depth of 48 inches is standard. Posts for a 40×60 pole barn should be embedded at least 6 inches below that depth to ensure the concrete footings anchor below the freezing zone. This method, combined with proper backfill, transfers the building’s weight to stable soil below, minimizing movement.
What Concrete Footing Sizes Are Recommended for a Wick Buildings 40×60?
Concrete footings distribute the load of the building posts to prevent settling and resist frost heave. For a Wick Buildings 40×60, typical post spacing is 8 to 10 feet, resulting in roughly 20 to 30 posts depending on design. Each post requires a footing that is at least 18 to 24 inches in diameter and 12 to 18 inches thick, poured directly against undisturbed soil or a compacted gravel base. However, in cold climates, the footing must extend below the frost line, not just the post—so a 10-inch diameter by 48-inch-deep drilled pier is common. The concrete mix should be 3,000 to 4,000 PSI (pounds per square inch) for durability, and reinforcing steel (rebar) is recommended to prevent cracking from freeze-thaw cycles.
The table below compares different footing options for frost-prone areas:
| Footing Type | Diameter (inches) | Depth Below Grade (inches) | Concrete Volume per Post (cubic ft) | Estimated Cost per Post (USD) | Frost Protection Rating |
|---|---|---|---|---|---|
| Standard poured pad | 24 | 12 (above frost line) | 1.6 | $45–$65 | Low—risks heave |
| Drilled pier (no bell) | 12 | 48 (below frost line) | 3.1 | $95–$130 | High—stable |
| Drilled pier with bell | 12 (bottom 18) | 48 | 4.2 | $120–$160 | Very High—extra resistance |
| Helical pile | 2.5 shaft, 8 helix | Variable (driven to refusal) | N/A (steel) | $180–$250 | Excellent—no concrete curing |
How Does Gravel Base Work for Frost Protection in a Wick Buildings 40×60?
Gravel is not just a substitute for concrete—it’s a critical component in frost protection for many pole barn foundations. In a Wick Buildings 40×60, a compacted gravel base (typically 6 to 12 inches thick) provides drainage that prevents water from pooling near the post footings. When water drains away, there’s less moisture to freeze and expand, reducing heave risk. Additionally, gravel can be used as backfill around posts to improve drainage below grade. The key is to use clean, angular stone (like 3/4-inch crushed rock) that locks together under compaction, providing a stable platform without trapping water.
For a full comparison of gravel base versus a concrete slab, check out our article Wick Buildings 40×60: Gravel Base vs Concrete Slab Comparison—it covers how each affects drainage, insulation, and long-term frost resistance.
Many contractors recommend placing a 4-inch layer of gravel under the entire slab if you opt for a concrete floor, with a thicker layer (8-12 inches) around perimeter posts. In cold climates, adding a layer of rigid foam insulation (e.g., 2-inch XPS) on top of the gravel inside the building can also help prevent frost heave from below the slab by stabilizing the ground temperature.
Which Anchoring Systems (Poured Concrete vs Helical Piles) Work Best for Frost?
For a Wick Buildings 40×60 in deep frost areas, the choice between poured concrete footings and helical piles often comes down to soil conditions and budget. Poured concrete is traditional and cost-effective when local labor and materials are readily available—average cost per post is $95–$160 as shown in the table above. However, it requires excavation, forms, curing time, and careful placement below frost line. Helical piles (screw piles) are steel shafts with spiral plates that are screwed into the ground until they reach load-bearing strata, bypassing frost entirely. They cost more upfront ($180–$250 per post) but offer several advantages: no concrete curing, immediate load capacity, and installation in below-freezing weather. For extremely cold or wet soils, helical piles reduce the risk of heave because they aren’t affected by frost cycles.
A common hybrid approach for a 40×60 is to use poured concrete for interior posts (where the slab provides insulation) and helical piles for corner and perimeter posts (which are most exposed to frost). This balances cost with targeted frost protection. Regardless of the system, all posts must be anchored to a foundation that extends below the frost line—this is not optional in cold climates.
What Role Does a Vapor Barrier Play in Frost Protection?
A vapor barrier is essential under the concrete slab to prevent moisture from the ground from rising and causing frost problems. In a Wick Buildings 40×60, a 6-mil polyethylene sheet (or thicker 10-mil for added durability) laid over a 2-inch sand bedding layer stops capillary moisture from migrating upward. If moisture reaches the slab surface and freezes, it can create ice lenses that heave the floor. The vapor barrier should extend up the sides of the posts and be sealed at all seams with tape to form a continuous membrane. This is especially important in cold climates where freeze-thaw cycles are frequent.
For a step-by-step guide on how to install a vapor barrier correctly during construction, see our Wick Buildings 40×60: Vapor Barrier Installation Guide for Concrete Slab. It details proper overlapping, sealing around posts, and avoiding punctures that can compromise the barrier.
An additional frost-protection measure is to install a layer of rigid foam insulation (e.g., 2-inch EPS or XPS) on top of the vapor barrier under the slab. This insulates the ground, reducing heat loss from the building and preventing the subgrade from freezing. In severe climates, perimeter insulation (vertical panels extending 2 feet below grade around the slab edge) further minimizes frost penetration.
What Owners Say About Frost Performance of Wick Buildings 40×60
Real-world experiences from owners in cold states like Wisconsin, North Dakota, and upstate New York consistently emphasize the importance of proper foundation preparation. Many report that Wick Buildings’ pre-engineered post frame systems, when anchored below the frost line, have held up well through multiple harsh winters with no visible shifting or cracking. One owner in Minnesota noted: “I set my posts 54 inches deep with concrete collars, and after five years, there’s zero heave—the building sits square despite -30°F winters.” Others who opted for helical piles on a clay soil site in Michigan praised the stability, though some mention the higher upfront cost was worth it for peace of mind. Common advice from owners includes: always check local frost depth before pouring, and invest in gravel drainage around all posts to avoid water pooling. For those considering post-frame construction over stick-built, our comparison Wick Buildings 40×60: Post Frame Construction vs Stick Built Which Is Better? explains how post-frame’s embedded posts inherently resist frost better than typical slab-on-grade foundations.
Frequently Asked Questions About Wick Buildings 40×60 Foundation and Frost
- Can I build a Wick Buildings 40×60 on a concrete slab alone in a cold climate? No, a slab alone provides no frost protection—the posts must be anchored below the frost line. Aerated concrete slabs with insulation (frost-protected shallow foundations, or FPSF) are an option but require engineering approval.
- How much does a frost-protected foundation for a 40×60 cost? Expect $3,000–$6,000 for poured concrete posts with footings (20-30 posts), or $5,000–$8,000 for helical piles, depending on soil and local rates.
- What happens if the frost line is 60 inches deep? Posts must extend to at least 66 inches below grade with footings at that depth. In extreme cases, helical piles may be more practical because they can be driven deeper without excavation.
- Do I need a vapor barrier if I don’t have a slab? If you’re using a gravel floor, a vapor barrier under the gravel is still recommended to stop moisture rise, though it’s less critical than under concrete.
- Can I retrofit frost protection after the building is erected? Retrofitting posts is difficult. Drainage improvements (adding French drains around the perimeter) can help reduce frost heave risk but cannot fix inadequate depth. It’s best to plan correctly during construction.
- Will Wick Buildings provide foundation plans for cold climates? Yes, Wick Buildings offers engineered foundation designs specific to frost depths, but you must provide local frost data. Always verify with a local engineer for your site.
